Rooftop Air Condition

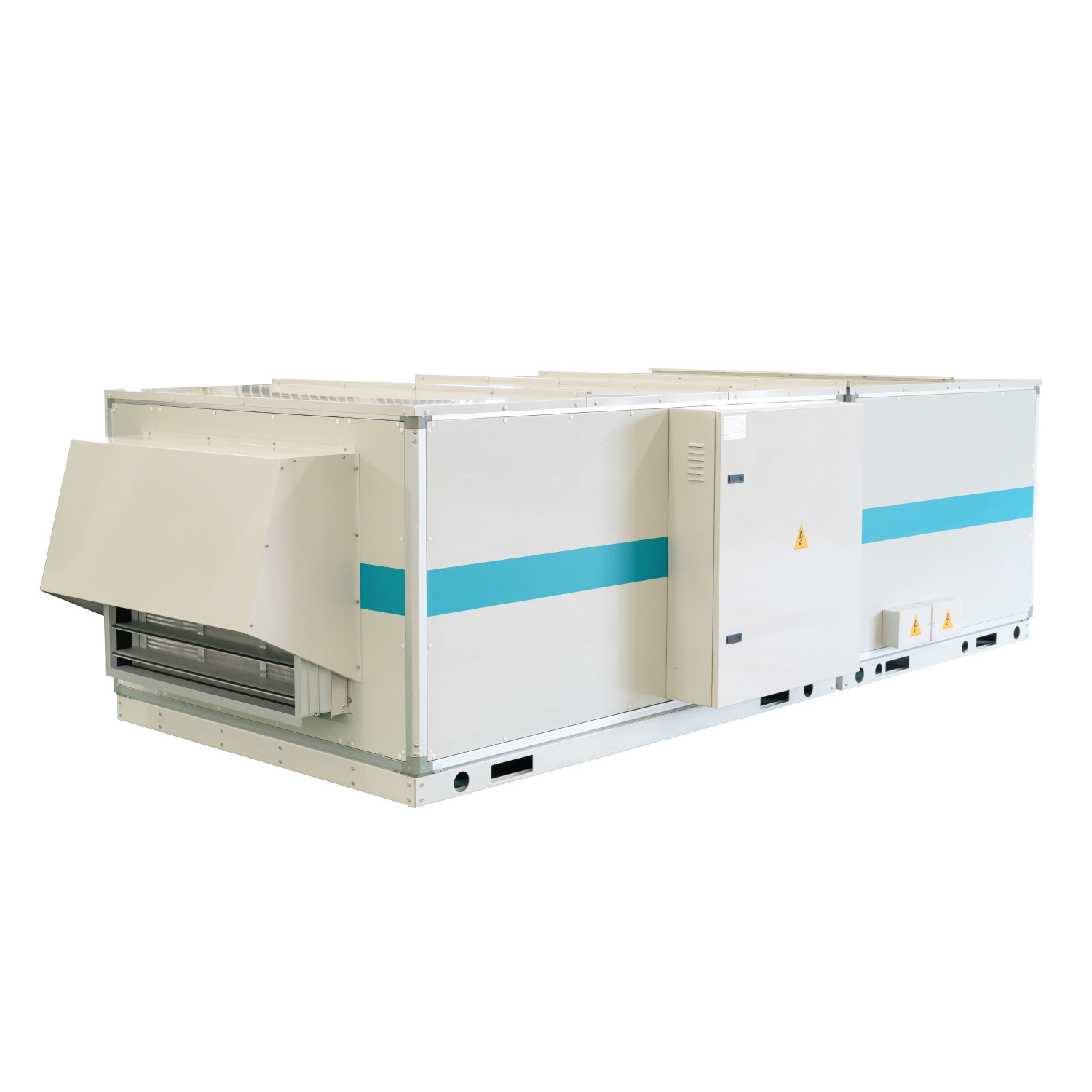

Rooftop Heat Pump AC

The Rooftop Heat Pump AC is an integrated packaged rooftop air conditioning device that transfers heat between indoor air and outdoor atmosphere to realize cooling and heating all year long through built-in heat pump compressors, DX finned coils, large circulation blowers and multi-stage air filter assemblies. It unifies cooling and heating functions into one rooftop unit without extra heating facilities, reduces upfront equipment investment and continuous power consumption, and is widely adopted in retail shops, office buildings, restaurants and commercial centers with all-season temperature regulation requirements.

The Rooftop Heat Pump AC is an integrated packaged rooftop air conditioning device that transfers heat between indoor air and outdoor atmosphere to realize cooling and heating all year long through built-in heat pump compressors, DX finned coils, large circulation blowers and multi-stage air filter assemblies. It unifies cooling and heating functions into one rooftop unit without extra heating facilities, reduces upfront equipment investment and continuous power consumption, and is widely adopted in retail shops, office buildings, restaurants and commercial centers with all-season temperature regulation requirements.

Previous: Modular AHU
Product Details
ㅤProduct Parametersㅤ
ㅤProduct Descriptionㅤ
ㅤProduct Featuresㅤ

Technical Data

1、Inverter Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BBDC RH-075BBDC RH-085BBDC RH-100BBDC RH-125BBDC RH-150BBDC RH-175BBDC RH-200BBDC RH-250BBDC RH-300BBDC
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.8 8 9.8 11.8 14.8 17.8 21 23.1 32.7 38.7
EER 1 Btu/h/W 11.0  11.1  10.5  10.2  10.1  10.1  9.9  10.4  9.2  9.3
Cooling 2 Cooling Capacity Btu/h 61500 71000 84000 98400 125000 155000 170000 200000 252000 305000
kW 18 21 25 29 37 45 50 59 74 89
Power Input kW 7.6 8.8 10.5 12.5 15.7 19.2 21.5 25 33.8 40.2
EER 2 Btu/h/W 8.1  8.1  8.0  7.9  8.0  8.1  7.9  8.0  7.5  7.6
Heating Heating Capacity Btu/h 76400 91400 109100 124900 156000 187000 209800 248400 311800 374000
kW 22.4 26.8 32 36.6 45.7 54.8 61.5 72.8 91.4 109.6
Power Input kW 6.6 7.6 9.7 11.1 14.3 17 19.5 22.3 31.7 37.6
COP Btu/h/W 11.6  12.0  11.2  11.3  10.9  11.0  10.8  11.1  9.8  9.9
Max. input consumption kW 9.2 10.8 13.3 16 20 24.1 28.4 31.2 44.2 52.3
Max. current A 18.2 21.5 26.4 31.2 39 47 55.4 60.9 86.2 102
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Rotor Rotor Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.0  5.2 7.2 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 233 248 346 349 459 500 625 700 955 970
Gross Weight kg 238 253 356 360 479 520 655 730 985 1000
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



2、Fixed Speed Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BB RH-075BB RH-085BB RH-100BB RH-125BB RH-150BB RH-175BB RH-200BB RH-250BB RH-300BB
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.6 7.9 9.3 10.7 13.3 16.7 19.1 22.6 28.85 35.29
EER 1 Btu/h/W 11.4  11.3  11.1  11.2  11.3  10.8  10.9  10.6  10.4  10.2
Cooling 2 Cooling Capacity Btu/h 61500 72980 85000 98400 123000 155000 175000 200000 252000 315000
kW 18 21 25 29 36 45 51 59 74 92
Power Input kW 7.6 9.1 10.8 12.3 15.4 19.5 22.1 25.2 32 39
EER 2 Btu/h/W 8.1  8.0  7.9  8.0  8.0  7.9  7.9  7.9  7.9  8.1
Heating Heating Capacity Btu/h 89000 103000 120000 137000 154000 191000 218000 260000 330000 380000
kW 26 30 35 40 45 56 64 75 97 111.5
Power Input kW 7.5 8.9 10.6 11.9 13.2 17.2 19.5 23.6 30.28 35.19
COP Btu/h/W 11.9  11.6  11.3  11.5  11.7  11.1  11.2  11.0  10.9  10.8
Max. input consumption kW 8.6 12 13.6 15 19.7 25 27 32.5 38.5 42.7
Max. current A 18.3 24.8 26.5 28.8 38.2 46.1 55.4 63.2 74.3 81.7
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Quantity 1 1 1 1 1 1 2 2 2 2
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.2 6.5 7.8 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 229 244 340 343 451 492 615 690 940 955
Gross Weight kg 234 249 350 354 471 512 645 720 970 985
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



Notes:
1. Cooling capacity test condition (1): Outdoor ambient temperature: 35° C, indoor temperature 26.7° CDB/19.4° C WB;
    Cooling capacity test condition (2): Outdoor ambient temperature: 46°C, indoor temperature: 26.7°CDB, 19.4°CWB;
    Heating capacity test condition : Outdoor ambient temperature: 7 ° CDB/6° C WB, indoor temperature 20° C DB/ 15° C WB;
2. Units are suitable for operation to ± 20% of nominal CFM;
3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front ofthe unit and (1 meter+Height of unit)/2 above the floor.
4. Specifications are subject to change without prior notice for product improvement.
5. * Nominal ton only for reference.
6. Cooling or heating capacity as per specifications.



Reference



Country: China
Application: Cool Storehouse
Type: constant temperature and constant humidity unit
One model:
Cooling capacity: 22kW
Electric heating capacity: 82kW
Humidifying capacity: 6kg/h
Supply air: 4500 m3/h
Another model:
Cooling capacity: 180kW
Electric heating capacity: 90kW
Humidifying capacity: 30kg/h
Supply air: 35000 m3/h

Country: Nigeria
Application: Pharmaceutical Factory
Type: heat pump type
Cooling capacity: 36.2kW
Heating capacity: 38kW
Refrigerant: R407C
Compressor: Sanyo

Country: Jordan
Application: Textile Factory
Type: heat pump type
Cooling capacity: 368kW
Heating capacity: 359kW
Refrigerant: R410A
Compressor: Copeland
With heat recovery coil

Country: USA
Application: Residential
Type: heat pump type
Cooling capacity: 5 Ton
Heating capacity:
Refrigerant: R410A
Compressor:
COP: 3.0
Power supply: 230V/3PH/60Hz



约旦-1
约旦-2



Technical Data

1、Inverter Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BBDC RH-075BBDC RH-085BBDC RH-100BBDC RH-125BBDC RH-150BBDC RH-175BBDC RH-200BBDC RH-250BBDC RH-300BBDC
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.8 8 9.8 11.8 14.8 17.8 21 23.1 32.7 38.7
EER 1 Btu/h/W 11.0  11.1  10.5  10.2  10.1  10.1  9.9  10.4  9.2  9.3
Cooling 2 Cooling Capacity Btu/h 61500 71000 84000 98400 125000 155000 170000 200000 252000 305000
kW 18 21 25 29 37 45 50 59 74 89
Power Input kW 7.6 8.8 10.5 12.5 15.7 19.2 21.5 25 33.8 40.2
EER 2 Btu/h/W 8.1  8.1  8.0  7.9  8.0  8.1  7.9  8.0  7.5  7.6
Heating Heating Capacity Btu/h 76400 91400 109100 124900 156000 187000 209800 248400 311800 374000
kW 22.4 26.8 32 36.6 45.7 54.8 61.5 72.8 91.4 109.6
Power Input kW 6.6 7.6 9.7 11.1 14.3 17 19.5 22.3 31.7 37.6
COP Btu/h/W 11.6  12.0  11.2  11.3  10.9  11.0  10.8  11.1  9.8  9.9
Max. input consumption kW 9.2 10.8 13.3 16 20 24.1 28.4 31.2 44.2 52.3
Max. current A 18.2 21.5 26.4 31.2 39 47 55.4 60.9 86.2 102
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Rotor Rotor Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.0  5.2 7.2 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 233 248 346 349 459 500 625 700 955 970
Gross Weight kg 238 253 356 360 479 520 655 730 985 1000
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



2、Fixed Speed Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BB RH-075BB RH-085BB RH-100BB RH-125BB RH-150BB RH-175BB RH-200BB RH-250BB RH-300BB
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.6 7.9 9.3 10.7 13.3 16.7 19.1 22.6 28.85 35.29
EER 1 Btu/h/W 11.4  11.3  11.1  11.2  11.3  10.8  10.9  10.6  10.4  10.2
Cooling 2 Cooling Capacity Btu/h 61500 72980 85000 98400 123000 155000 175000 200000 252000 315000
kW 18 21 25 29 36 45 51 59 74 92
Power Input kW 7.6 9.1 10.8 12.3 15.4 19.5 22.1 25.2 32 39
EER 2 Btu/h/W 8.1  8.0  7.9  8.0  8.0  7.9  7.9  7.9  7.9  8.1
Heating Heating Capacity Btu/h 89000 103000 120000 137000 154000 191000 218000 260000 330000 380000
kW 26 30 35 40 45 56 64 75 97 111.5
Power Input kW 7.5 8.9 10.6 11.9 13.2 17.2 19.5 23.6 30.28 35.19
COP Btu/h/W 11.9  11.6  11.3  11.5  11.7  11.1  11.2  11.0  10.9  10.8
Max. input consumption kW 8.6 12 13.6 15 19.7 25 27 32.5 38.5 42.7
Max. current A 18.3 24.8 26.5 28.8 38.2 46.1 55.4 63.2 74.3 81.7
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Quantity 1 1 1 1 1 1 2 2 2 2
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.2 6.5 7.8 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 229 244 340 343 451 492 615 690 940 955
Gross Weight kg 234 249 350 354 471 512 645 720 970 985
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



Notes:
1. Cooling capacity test condition (1): Outdoor ambient temperature: 35° C, indoor temperature 26.7° CDB/19.4° C WB;
    Cooling capacity test condition (2): Outdoor ambient temperature: 46°C, indoor temperature: 26.7°CDB, 19.4°CWB;
    Heating capacity test condition : Outdoor ambient temperature: 7 ° CDB/6° C WB, indoor temperature 20° C DB/ 15° C WB;
2. Units are suitable for operation to ± 20% of nominal CFM;
3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front ofthe unit and (1 meter+Height of unit)/2 above the floor.
4. Specifications are subject to change without prior notice for product improvement.
5. * Nominal ton only for reference.
6. Cooling or heating capacity as per specifications.



Reference



Country: China
Application: Cool Storehouse
Type: constant temperature and constant humidity unit
One model:
Cooling capacity: 22kW
Electric heating capacity: 82kW
Humidifying capacity: 6kg/h
Supply air: 4500 m3/h
Another model:
Cooling capacity: 180kW
Electric heating capacity: 90kW
Humidifying capacity: 30kg/h
Supply air: 35000 m3/h

Country: Nigeria
Application: Pharmaceutical Factory
Type: heat pump type
Cooling capacity: 36.2kW
Heating capacity: 38kW
Refrigerant: R407C
Compressor: Sanyo

Country: Jordan
Application: Textile Factory
Type: heat pump type
Cooling capacity: 368kW
Heating capacity: 359kW
Refrigerant: R410A
Compressor: Copeland
With heat recovery coil

Country: USA
Application: Residential
Type: heat pump type
Cooling capacity: 5 Ton
Heating capacity:
Refrigerant: R410A
Compressor:
COP: 3.0
Power supply: 230V/3PH/60Hz



约旦-1
约旦-2



Previous: Modular AHU
Related Products
国特 屋顶2.jpg

Heat Pump Package Unit-

Heat Pump Package Unit

The Heat Pump Package Unit is an all-in-one direct expansion HVAC device that shifts thermal energy between indoor air and outdoor surroundings to deliver cooling and heating all year via integrated heat pump compressors, finned DX coils, high-flow c...


Packaged HVAC System-

Packaged HVAC System

The Packaged HVAC System is a self-contained air conditioning unit that exchanges heat through refrigerant in finned DX coils to cool and heat indoor air via built-in compressors, large circulation blowers and multi-stage air filter assemblies. It in...


Package Air Conditioning Unit-

Package Air Conditioning Unit

The Package Air Conditioning Unit is a self-contained direct expansion climate device that transfers heat between refrigerant and airflow via robust finned DX coils to deliver cooling and heating through built-in compressors, high-capacity circulatio...


Packaged Rooftop Unit-

Packaged Rooftop Unit

The Packaged Rooftop Unit is a self-contained direct expansion HVAC device that transfers heat between refrigerant and supply air via heavy-duty finned DX coils to provide cooling and heating through integrated compressors, high-volume circulation bl...

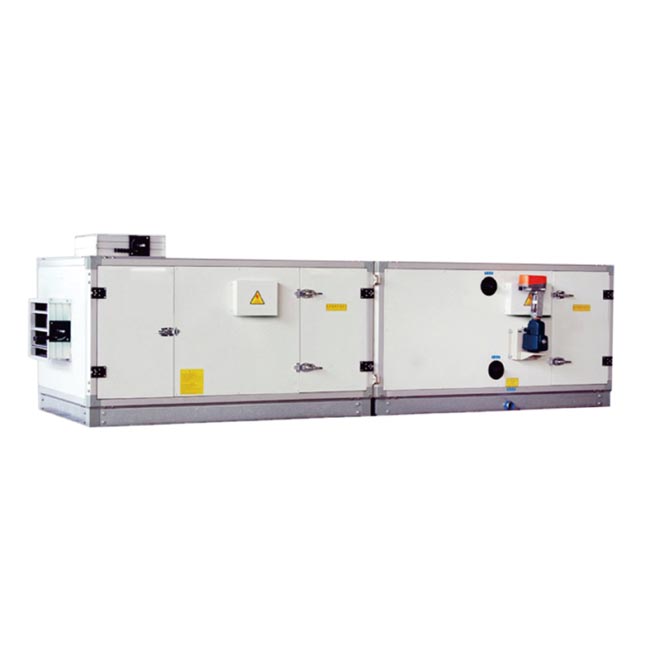

kf 空调箱 17 10.jpg

Clean Operating Room AHU-

Clean Operating Room AHU

The Clean Operating Room AHU is a high-performance air handling unit that regulates temperature, humidity and air cleanliness for surgical spaces by processing supply air through multi-stage filtration, cooling coils and humidification modules. It ma...

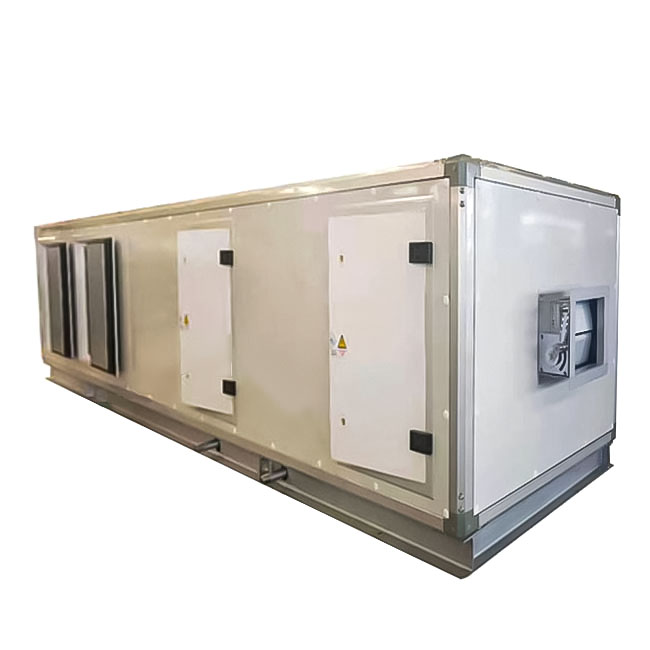

AHU KF Operating Room Combined (5).jpg

Hospital Clean Surgery AHU-

Hospital Clean Surgery AHU

The Hospital Clean Surgery AHU is a high-standard sanitary air handling unit that stabilizes temperature, humidity and air purity for surgical operating rooms by treating fresh air with multi-layer high-efficiency filters, anti-corrosion cooling coil...


Air Handling Unit-

Air Handling Unit

The Air Handling Unit is a high-efficiency air conditioning device that adjusts the temperature, humidity and cleanliness of indoor air by exchanging heat between circulating air and chilled/hot water through finned coils, filters and ventilation fan...


Commercial HVAC System-

Commercial HVAC System

The Commercial HVAC System is an integrated high-efficiency climate control system that regulates indoor temperature, humidity, ventilation and air purity by exchanging heat between building air and refrigerant or chilled water through air handling u...


Fresh Air Air Handling Unit-

Fresh Air Air Handling Unit

The Fresh Air Air Handling Unit is a high-efficiency ventilation conditioning device that processes outdoor fresh air by adjusting its temperature, humidity and cleanliness through heat exchange coils, multi-stage filters and circulation fans. It con...

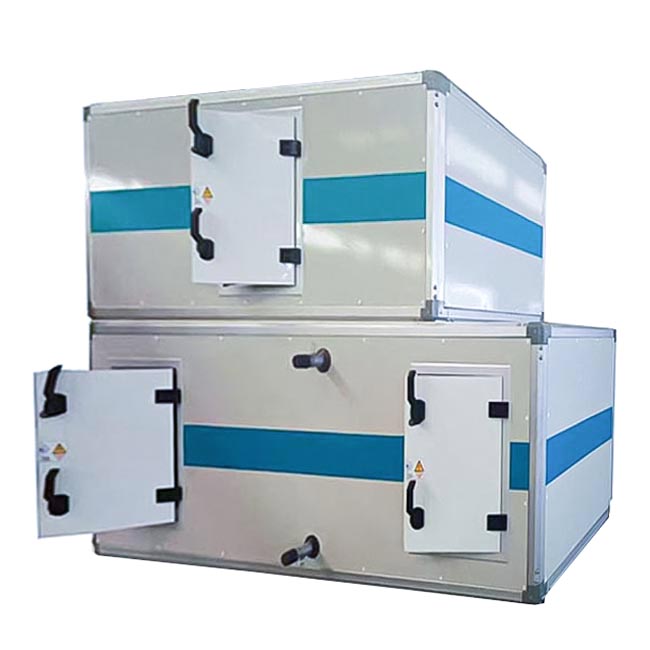

AHU Clean kf (1).jpg

Clean Room Air Handling Unit-

Clean Room Air Handling Unit

The Clean Room Air Handling Unit is a high-standard air purification and conditioning device that processes supply air to control temperature, humidity and particle concentration by means of stainless steel heat coils, multi-stage high-efficiency fil...

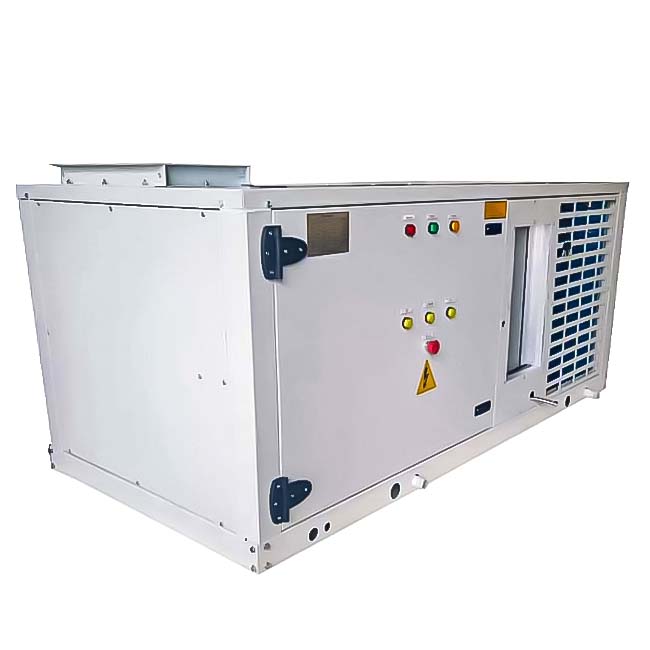

AHU Clean PCR Test Station (2).jpg

Commercial Air Handling Unit-

Commercial Air Handling Unit

The Commercial Air Handling Unit is a high-efficiency air conditioning and ventilation device that regulates indoor air temperature, humidity and air quality by conducting heat exchange between circulating air and chilled or hot water via finned coil...

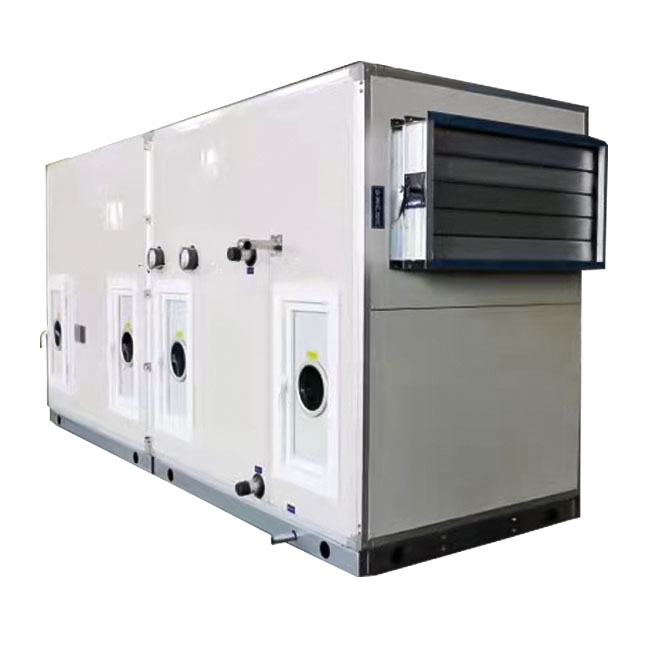

AHU clean1 (1).jpg

Laboratory AHU-

Laboratory AHU

The Laboratory AHU is a precision air conditioning and purification device that stabilizes indoor temperature, humidity, air cleanliness and negative/positive pressure by processing supply air through anti-corrosion heat coils, multi-stage high-effic...

DSC03332 10.jpg

Cleanroom Air Handler-

Cleanroom Air Handler

The Cleanroom Air Handler is a high-standard hygienic air treatment unit that precisely adjusts supply air temperature, humidity and particle concentration via stainless steel heat coils, multi-stage high-efficiency filters and low-vibration variable...

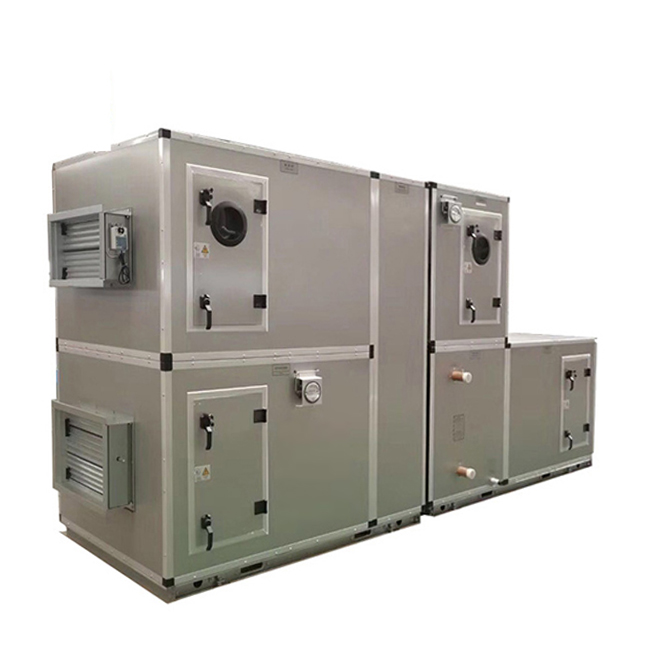

5 10.jpg

Pharma Air Handling Unit-

Pharma Air Handling Unit

The Pharma Air Handling Unit is a GMP-compliant hygienic air conditioning unit that controls supply air temperature, humidity and particulate levels through polished stainless steel heat coils, multi-stage high-efficiency filters and low-vibration va...

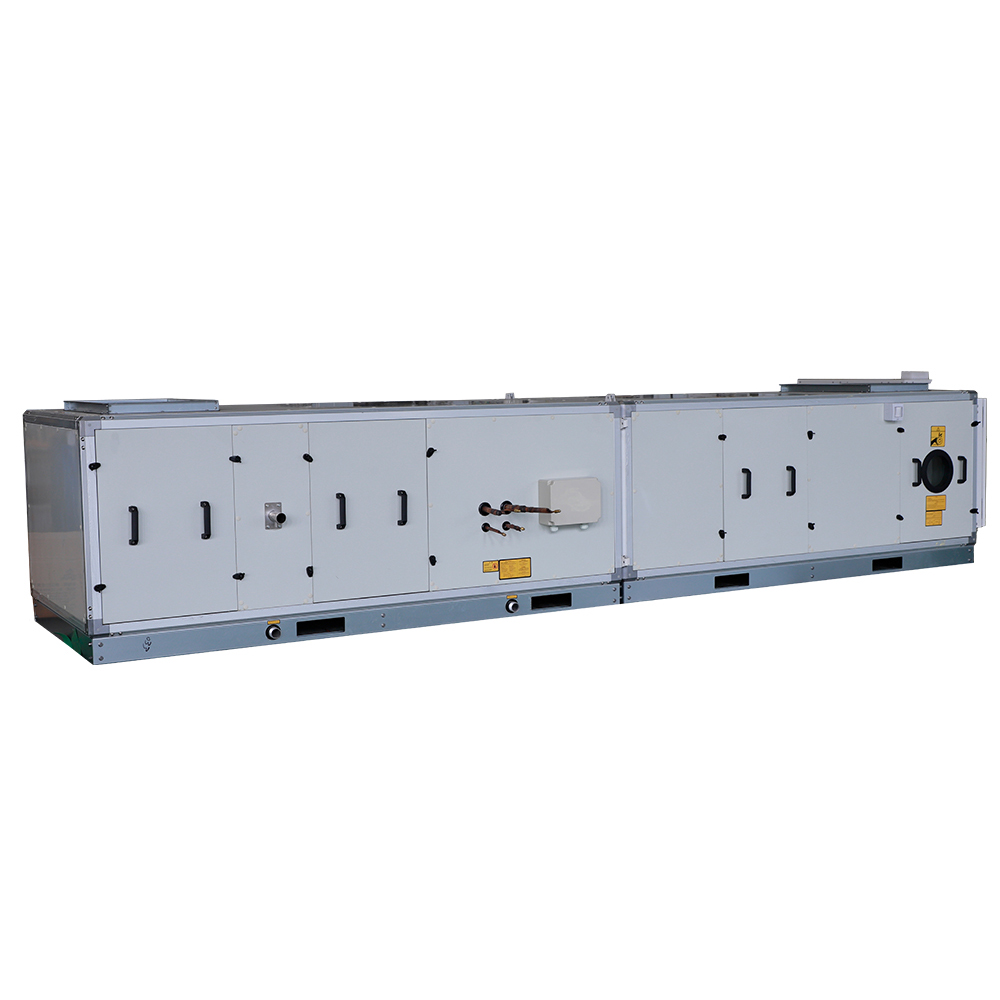

long (2) 方 10.jpg

Multi-function AHU-

Multi-function AHU

The Multi-function AHU is an all-in-one high-efficiency air treatment device that adjusts indoor air temperature, humidity, cleanliness and ventilation volume simultaneously via integrated finned heat coils, multi-stage filters, energy-saving fans an...

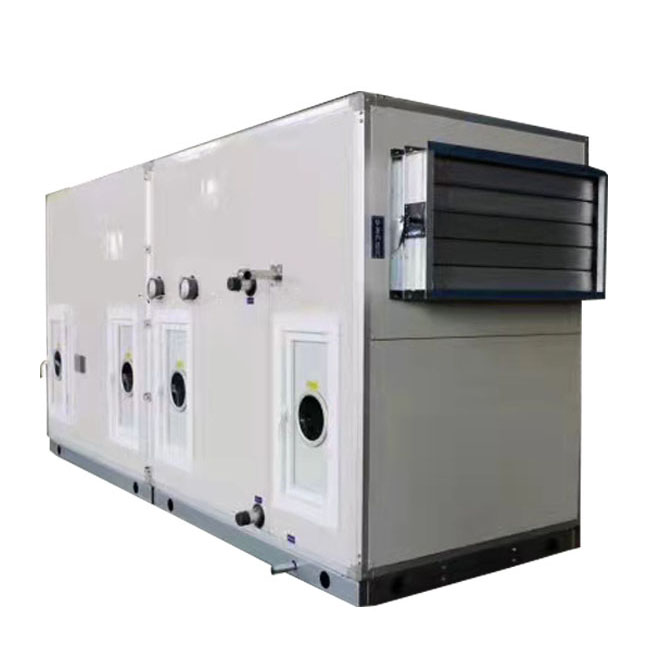

kf 空调箱 16 10.jpg

Constant Temperature AHU-

Constant Temperature AHU

The Constant Temperature AHU is a precision air conditioning device that stabilizes supply air at fixed temperature ranges via high-precision finned heat coils, constant-speed variable fans and real-time temperature sensing modules. It maintains ultr...

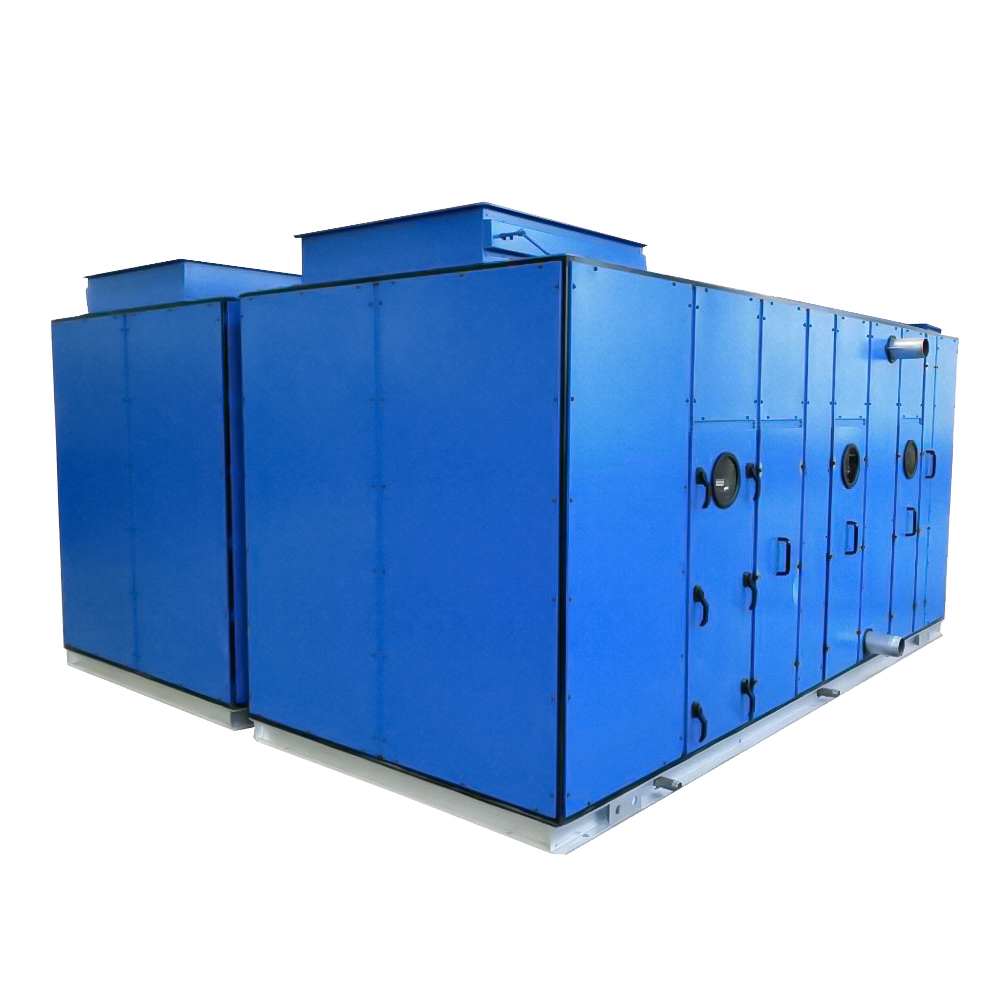

AHU BLUE 2.jpg

Constant Temperature & Humidity AHU-

Constant Temperature & Humidity AHU

The Constant Temperature & Humidity AHU is a high-precision environmental control unit that precisely stabilizes supply air temperature and relative humidity through precision finned heat coils, dedicated humidification/dehumidification sections, sen...

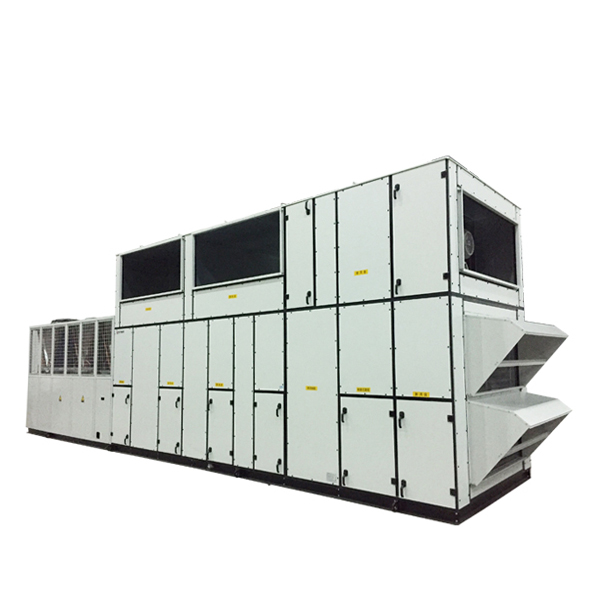

转轮热回收--舍弗勒 (1).jpg

Modular AHU-

Modular AHU

The Modular AHU is a flexible combined air conditioning device that regulates air temperature, humidity and cleanliness through detachable heat coil sections, replaceable filter modules and interchangeable fan units. It supports free customized funct...


Rooftop Air Conditioner-

Rooftop Air Conditioner

The Rooftop Air Conditioner is a complete packaged direct expansion cooling and heating unit that exchanges heat via refrigerant through built-in finned coils, powerful circulation blowers and multi-stage air filter components. It is installed extern...

凯丰 屋顶 (3).jpg

Package Unit Air Conditioner-

Package Unit Air Conditioner

The Package Unit Air Conditioner is an integrated monolithic direct expansion air conditioning system that realizes indoor cooling and heating by refrigerant heat exchange via built-in finned coils, high-capacity circulation blowers and multi-stage a...

国特 屋顶2.jpg

Heat Pump Package Unit-

Heat Pump Package Unit

The Heat Pump Package Unit is an all-in-one direct expansion HVAC device that shifts thermal energy between indoor air and outdoor surroundings to deliver cooling and heating all year via integrated heat pump compressors, finned DX coils, high-flow c...


Packaged HVAC System-

Packaged HVAC System

The Packaged HVAC System is a self-contained air conditioning unit that exchanges heat through refrigerant in finned DX coils to cool and heat indoor air via built-in compressors, large circulation blowers and multi-stage air filter assemblies. It in...


Package Air Conditioning Unit-

Package Air Conditioning Unit

The Package Air Conditioning Unit is a self-contained direct expansion climate device that transfers heat between refrigerant and airflow via robust finned DX coils to deliver cooling and heating through built-in compressors, high-capacity circulatio...


Packaged Rooftop Unit-

Packaged Rooftop Unit

The Packaged Rooftop Unit is a self-contained direct expansion HVAC device that transfers heat between refrigerant and supply air via heavy-duty finned DX coils to provide cooling and heating through integrated compressors, high-volume circulation bl...

kf 空调箱 17 10.jpg

Clean Operating Room AHU-

Clean Operating Room AHU

The Clean Operating Room AHU is a high-performance air handling unit that regulates temperature, humidity and air cleanliness for surgical spaces by processing supply air through multi-stage filtration, cooling coils and humidification modules. It ma...

AHU KF Operating Room Combined (5).jpg

Hospital Clean Surgery AHU-

Hospital Clean Surgery AHU

The Hospital Clean Surgery AHU is a high-standard sanitary air handling unit that stabilizes temperature, humidity and air purity for surgical operating rooms by treating fresh air with multi-layer high-efficiency filters, anti-corrosion cooling coil...


Air Handling Unit-

Air Handling Unit

The Air Handling Unit is a high-efficiency air conditioning device that adjusts the temperature, humidity and cleanliness of indoor air by exchanging heat between circulating air and chilled/hot water through finned coils, filters and ventilation fan...


Commercial HVAC System-

Commercial HVAC System

The Commercial HVAC System is an integrated high-efficiency climate control system that regulates indoor temperature, humidity, ventilation and air purity by exchanging heat between building air and refrigerant or chilled water through air handling u...

Frequently Asked Questions
Q: What products and solutions does Shanghai Shenglin provide?

Shanghai Shenglin specializes in data center infrastructure and complete data center solutions. Our product portfolio includes liquid cooling systems, CDU (Coolant Distribution Units), chillers, dry coolers, precision air conditioning systems, modular data centers, and customized thermal management solutions for AI, cloud computing, edge computing, and industrial applications.

Q: Can Shenglin support overseas projects?

Yes. Shenglin has experience supporting international projects and has delivered solutions for customers in North America, the Middle East, Southeast Asia, and other regions. We provide technical consultation, equipment supply, remote support, and on-site services based on project requirements.

Q: Why choose Shanghai Shenglin?

With more than a decade of experience, integrated engineering and manufacturing capabilities, and over 80 completed projects across data centers, energy storage, and industrial applications, Shenglin is committed to delivering reliable, efficient, and scalable infrastructure solutions for the next generation of digital facilities.

Q: How can I get a quotation or technical proposal?

Simply contact our team with your project requirements, including IT load, cooling demand, location, and deployment timeline. Our engineers will evaluate your needs and provide a customized solution proposal and quotation as quickly as possible.

Let’s talk about it

Ready to start a project?

Your satisfaction is our greatest pursuit, please fill in the form beside to send us your feedback or suggestions, we will reply you as soon as possible.
Name
*
Email
*
Tel
*
Contact Us
*
