Rooftop Unit

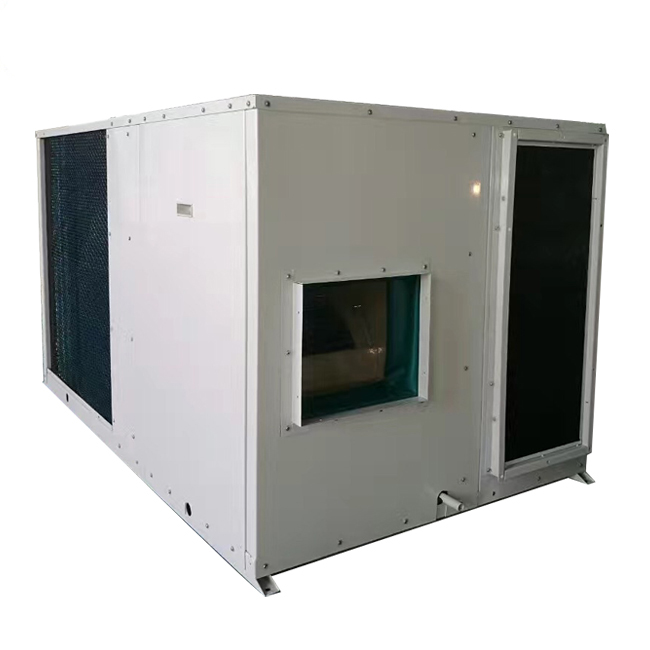

Heat Pump Rooftop Unit

The Heat Pump Rooftop Unit is an integrated all-in-one climate control device that delivers both cooling and heating by transferring heat between indoor air and ambient surroundings via built-in heat pump compressors, finned heat exchangers, circulating blowers and internal filter components. It realizes year-round temperature regulation with a single unit, reduces separate heating equipment investment and cuts overall energy consumption, and is widely adopted in supermarkets, industrial workshops, retail malls and commercial buildings with simultaneous cooling and heating demands.

The Heat Pump Rooftop Unit is an integrated all-in-one climate control device that delivers both cooling and heating by transferring heat between indoor air and ambient surroundings via built-in heat pump compressors, finned heat exchangers, circulating blowers and internal filter components. It realizes year-round temperature regulation with a single unit, reduces separate heating equipment investment and cuts overall energy consumption, and is widely adopted in supermarkets, industrial workshops, retail malls and commercial buildings with simultaneous cooling and heating demands.

Previous: Rooftop AC Unit
Product Details
ㅤProduct Parametersㅤ
ㅤProduct Descriptionㅤ
ㅤProduct Featuresㅤ

Technical Data

1、Inverter Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BBDC RH-075BBDC RH-085BBDC RH-100BBDC RH-125BBDC RH-150BBDC RH-175BBDC RH-200BBDC RH-250BBDC RH-300BBDC
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.8 8 9.8 11.8 14.8 17.8 21 23.1 32.7 38.7
EER 1 Btu/h/W 11.0  11.1  10.5  10.2  10.1  10.1  9.9  10.4  9.2  9.3
Cooling 2 Cooling Capacity Btu/h 61500 71000 84000 98400 125000 155000 170000 200000 252000 305000
kW 18 21 25 29 37 45 50 59 74 89
Power Input kW 7.6 8.8 10.5 12.5 15.7 19.2 21.5 25 33.8 40.2
EER 2 Btu/h/W 8.1  8.1  8.0  7.9  8.0  8.1  7.9  8.0  7.5  7.6
Heating Heating Capacity Btu/h 76400 91400 109100 124900 156000 187000 209800 248400 311800 374000
kW 22.4 26.8 32 36.6 45.7 54.8 61.5 72.8 91.4 109.6
Power Input kW 6.6 7.6 9.7 11.1 14.3 17 19.5 22.3 31.7 37.6
COP Btu/h/W 11.6  12.0  11.2  11.3  10.9  11.0  10.8  11.1  9.8  9.9
Max. input consumption kW 9.2 10.8 13.3 16 20 24.1 28.4 31.2 44.2 52.3
Max. current A 18.2 21.5 26.4 31.2 39 47 55.4 60.9 86.2 102
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Rotor Rotor Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.0  5.2 7.2 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 233 248 346 349 459 500 625 700 955 970
Gross Weight kg 238 253 356 360 479 520 655 730 985 1000
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



2、Fixed Speed Rooftop Unit

Nominal ton (Ton) 6.2 7.5 8.5 10 12.5 15 17.5 20 25 30
Model RH-062BB RH-075BB RH-085BB RH-100BB RH-125BB RH-150BB RH-175BB RH-200BB RH-250BB RH-300BB
Power Supply V,Ph,Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz 380,3Ph,50Hz
Cooling 1 Cooling Capacity Btu/h 75000 89000 103000 120000 150000 180000 208000 240000 300000 360000
kW 22 26 30 35 43 53 61 70 87 105
Power Input kW 6.6 7.9 9.3 10.7 13.3 16.7 19.1 22.6 28.85 35.29
EER 1 Btu/h/W 11.4  11.3  11.1  11.2  11.3  10.8  10.9  10.6  10.4  10.2
Cooling 2 Cooling Capacity Btu/h 61500 72980 85000 98400 123000 155000 175000 200000 252000 315000
kW 18 21 25 29 36 45 51 59 74 92
Power Input kW 7.6 9.1 10.8 12.3 15.4 19.5 22.1 25.2 32 39
EER 2 Btu/h/W 8.1  8.0  7.9  8.0  8.0  7.9  7.9  7.9  7.9  8.1
Heating Heating Capacity Btu/h 89000 103000 120000 137000 154000 191000 218000 260000 330000 380000
kW 26 30 35 40 45 56 64 75 97 111.5
Power Input kW 7.5 8.9 10.6 11.9 13.2 17.2 19.5 23.6 30.28 35.19
COP Btu/h/W 11.9  11.6  11.3  11.5  11.7  11.1  11.2  11.0  10.9  10.8
Max. input consumption kW 8.6 12 13.6 15 19.7 25 27 32.5 38.5 42.7
Max. current A 18.3 24.8 26.5 28.8 38.2 46.1 55.4 63.2 74.3 81.7
Performance Indoor fan air flow CFM 2800 2800 3500 3500 5500 5500 7600 7600 11200 11200
ESP Pa 80 80 110 110 130 130 200 200 320 320
Indoor fan Type FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal FC Centrifugal
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Quantity 1 1 1 1 1 1 2 2 2 2
Outdoor Fan Type Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller Propeller
Quantity 1 1 1 1 1 1 2 2 2 2
Refrigerant Type R410A R410A R410A R410A R410A R410A R410A R410A R410A R410A
Refrigerant volume kg 4.3 4.8 5.2 6.5 7.8 9 5.5+5.5 6.7+6.7 7.6+7.6 8.6+8.6
Refrigerant Control Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve Electronic expansion valve
Sound pressure level dB(A) 71.5 71.5 71.2 71.5 71.8 76.9 76 75.3 76.8 77.9
Ambient temperature Cooling 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C 16° C-52° C
Heating -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C -10° C-24° C
Net Weight kg 229 244 340 343 451 492 615 690 940 955
Gross Weight kg 234 249 350 354 471 512 645 720 970 985
Net Dimension WxHxD mm 1475x840x1130 1475x840x1130 1475x1260x1130 1475x1260x1130 1965x1260x1130 1965x1260x1130 2200x1260x1670 2200x1260x1670 2200x1260x2320 2200x1260x2320
Packing WxHxD mm 1495x850x1150 1495x850x1150 1195x1270x1150 1495x1270x1150 1985x1270x1150 1985x1260x1150 2220x1270x1690 2220x1270x1690 2220x1270x2340 2220x1270x2340
Shipping Qty'Per 20'/40'/40'HQ 12/24/48 12/24/48 8/16/32 8/16/32 6/12/24 6/12/24 3/7/14 3/7/14 2/5/10 2/5/10



Notes:
1. Cooling capacity test condition (1): Outdoor ambient temperature: 35° C, indoor temperature 26.7° CDB/19.4° C WB;
    Cooling capacity test condition (2): Outdoor ambient temperature: 46°C, indoor temperature: 26.7°CDB, 19.4°CWB;
    Heating capacity test condition : Outdoor ambient temperature: 7 ° CDB/6° C WB, indoor temperature 20° C DB/ 15° C WB;
2. Units are suitable for operation to ± 20% of nominal CFM;
3. Sound values are measured in a semi-anechoic room, at a positon 1 meter in front ofthe unit and (1 meter+Height of unit)/2 above the floor.
4. Specifications are subject to change without prior notice for product improvement.
5. * Nominal ton only for reference.
6. Cooling or heating capacity as per specifications.



Reference



Country: China
Application: Cool Storehouse
Type: constant temperature and constant humidity unit
One model:
Cooling capacity: 22kW
Electric heating capacity: 82kW
Humidifying capacity: 6kg/h
Supply air: 4500 m3/h
Another model:
Cooling capacity: 180kW
Electric heating capacity: 90kW
Humidifying capacity: 30kg/h
Supply air: 35000 m3/h

Country: Nigeria
Application: Pharmaceutical Factory
Type: heat pump type
Cooling capacity: 36.2kW
Heating capacity: 38kW
Refrigerant: R407C
Compressor: Sanyo

Country: Jordan
Application: Textile Factory
Type: heat pump type
Cooling capacity: 368kW
Heating capacity: 359kW
Refrigerant: R410A
Compressor: Copeland
With heat recovery coil

Country: USA
Application: Residential
Type: heat pump type
Cooling capacity: 5 Ton
Heating capacity:
Refrigerant: R410A
Compressor:
COP: 3.0
Power supply: 230V/3PH/60Hz



约旦-1
约旦-2
